H.G.C. Custom AR15HB CAR 16" BULL

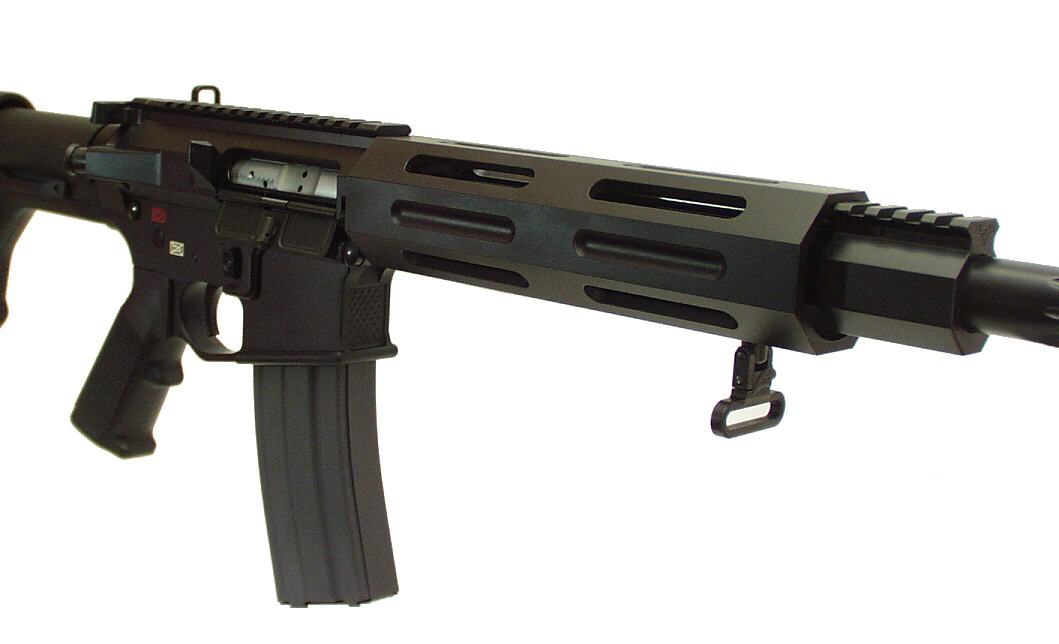

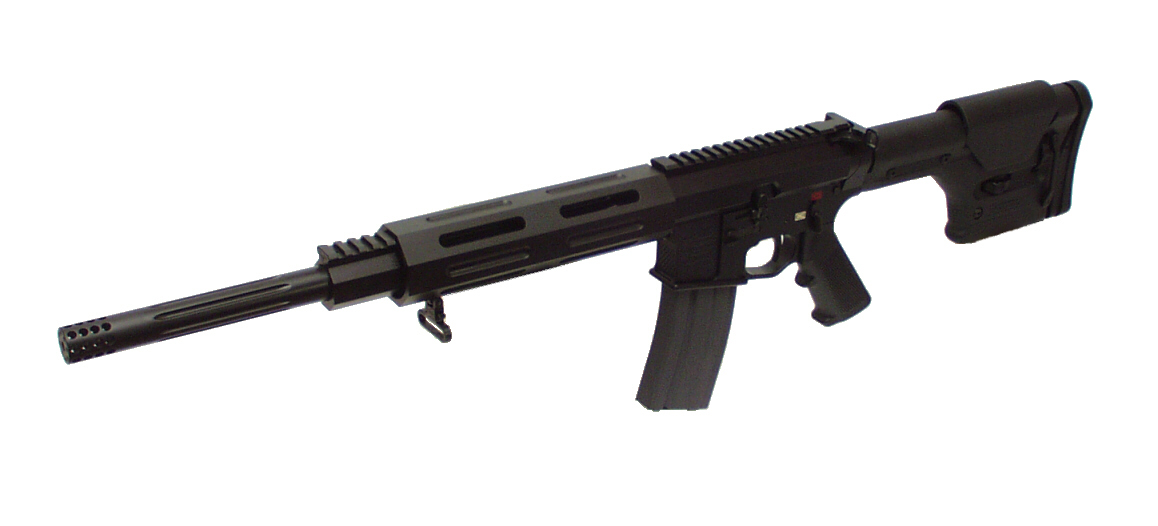

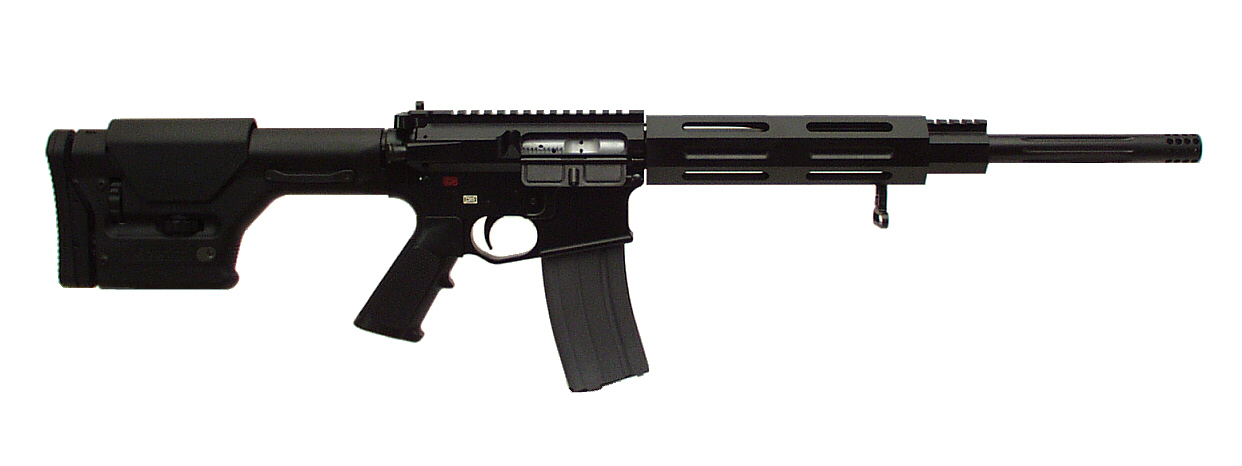

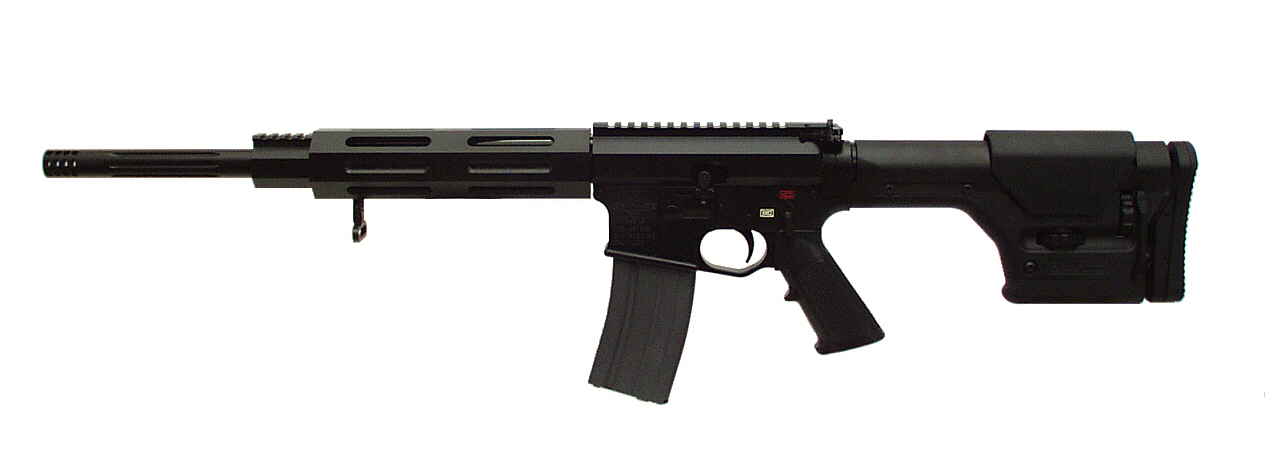

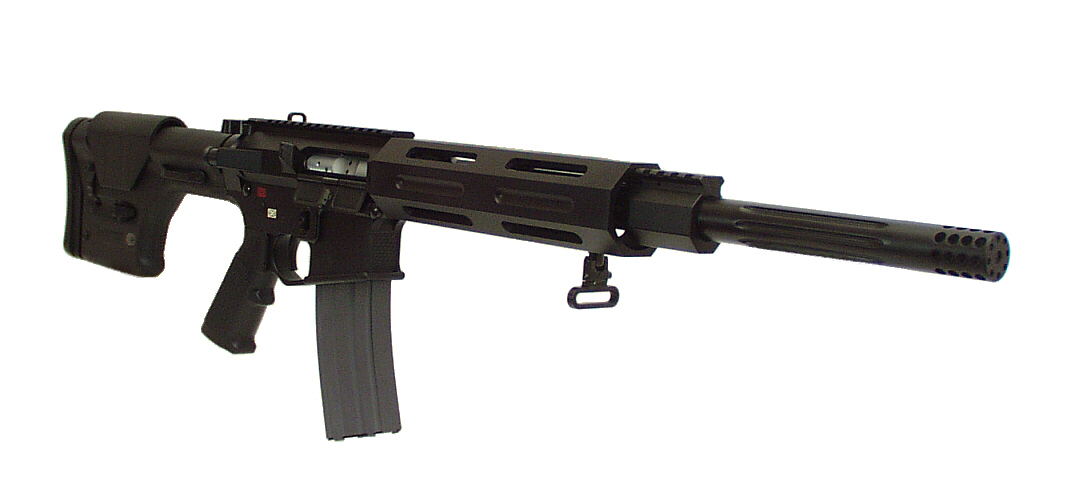

                       (Yin)

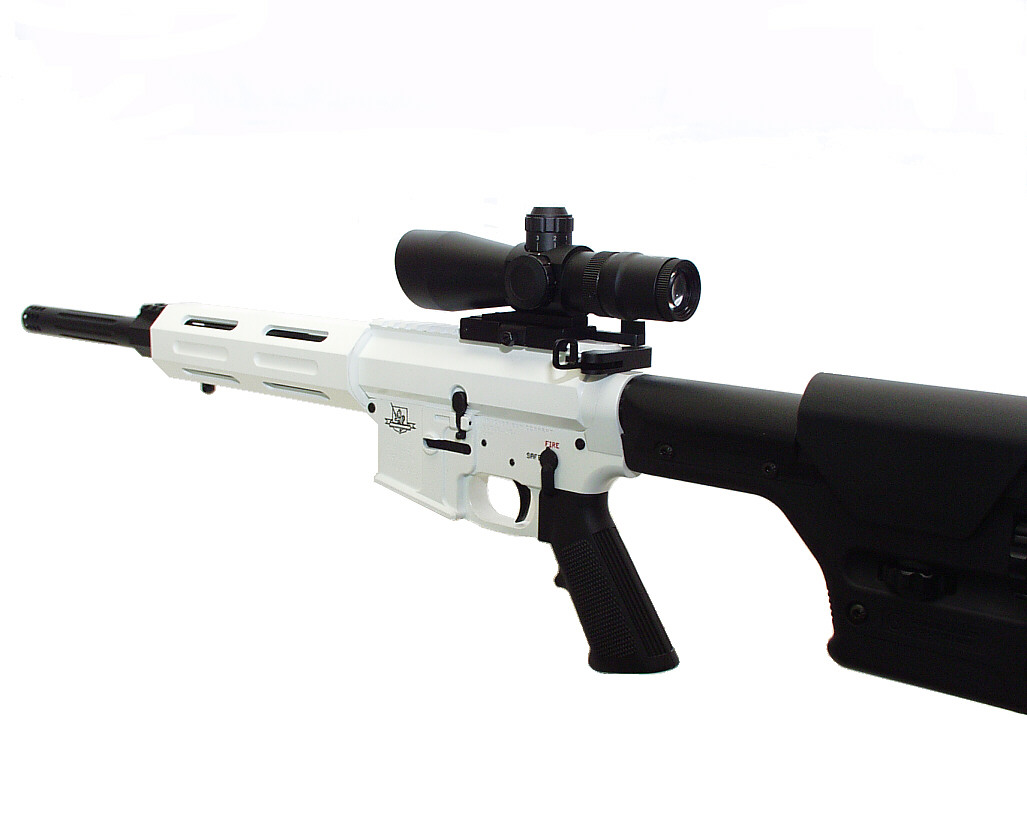

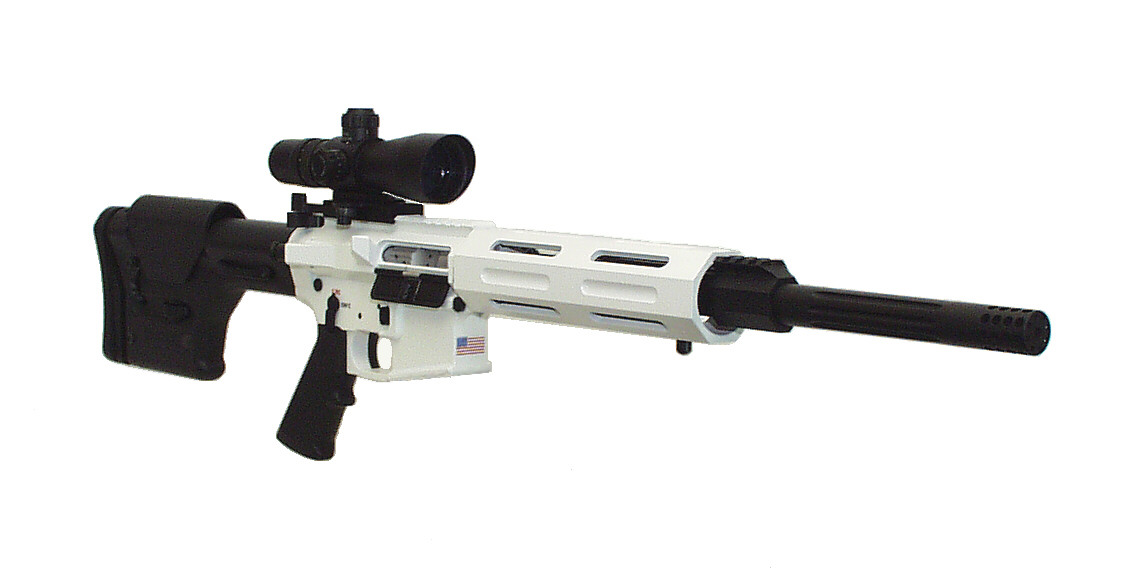

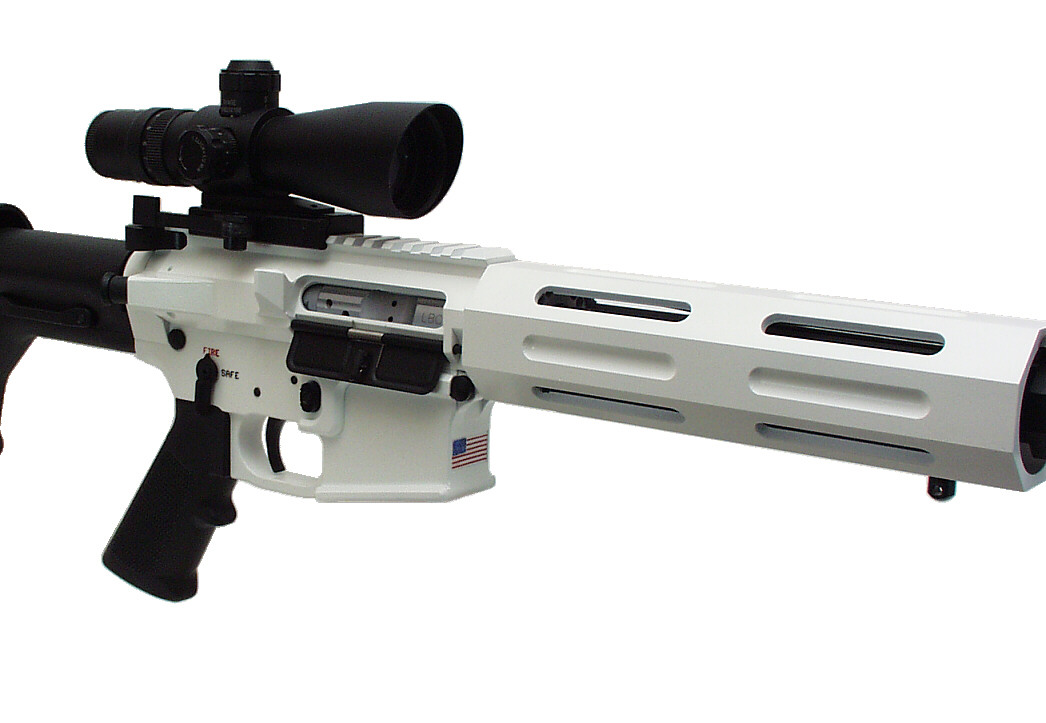

                       (Yang)

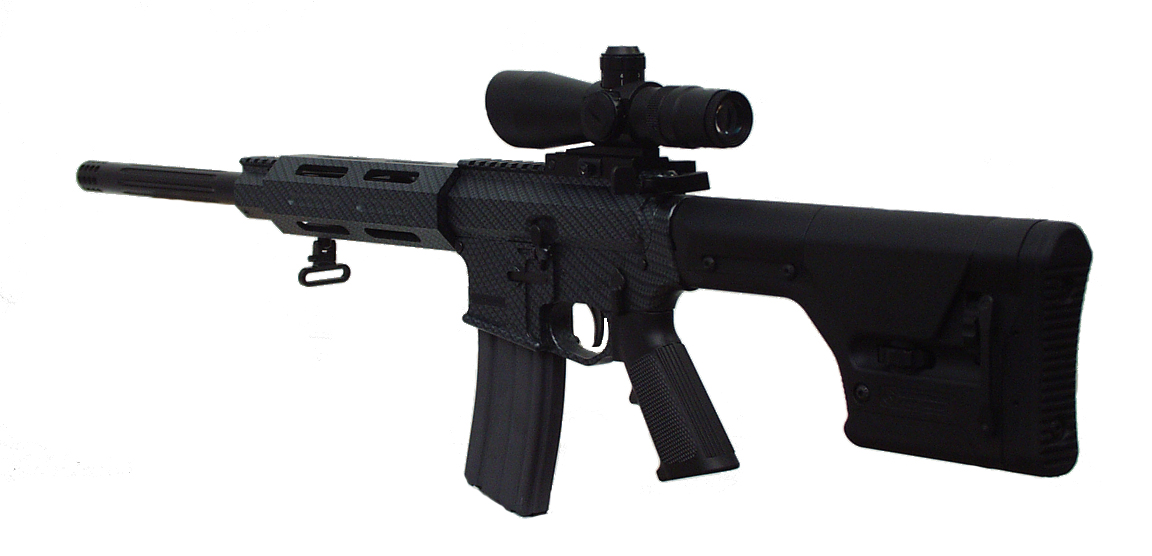

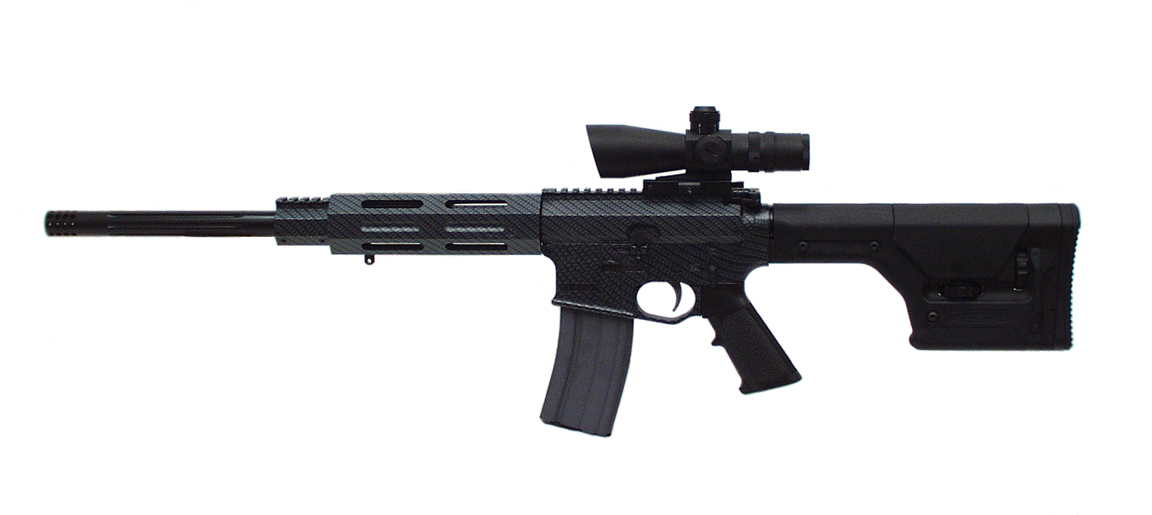

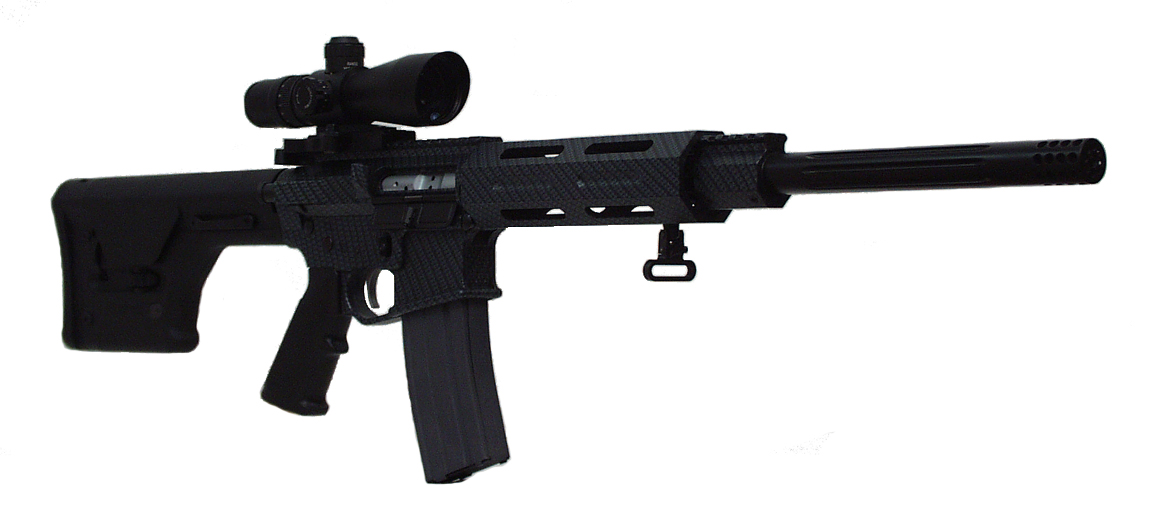

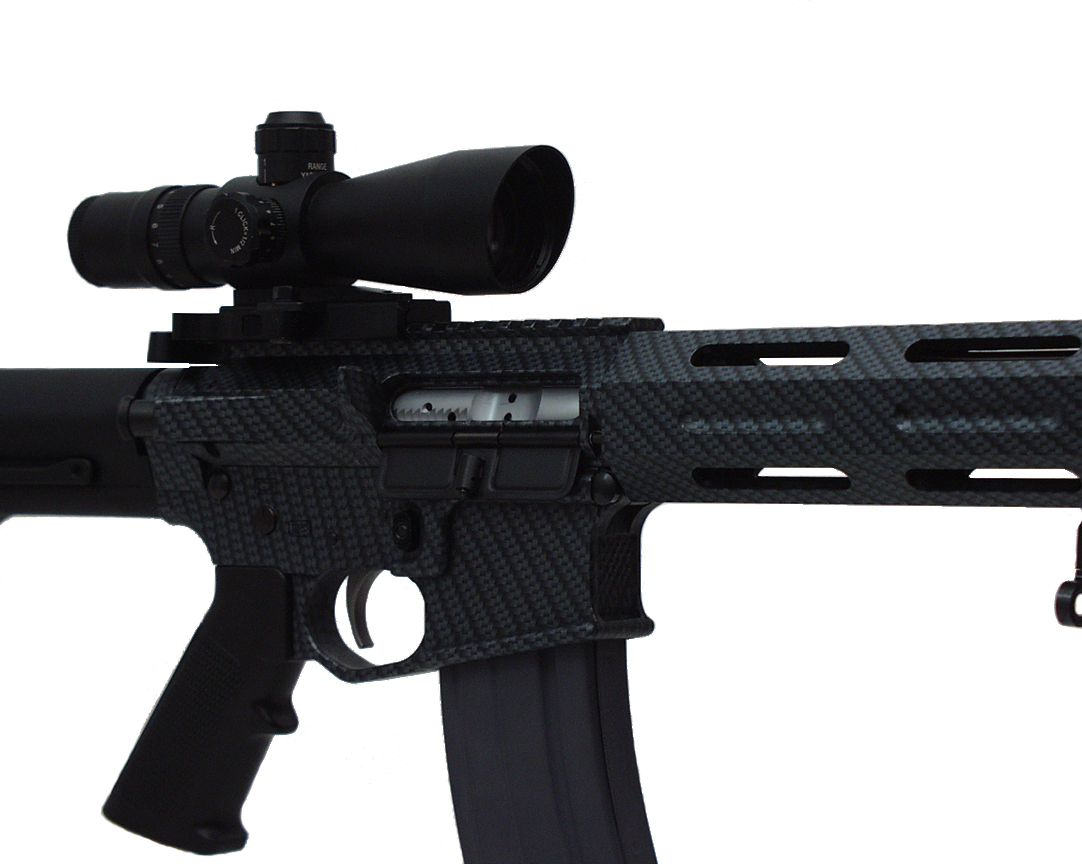

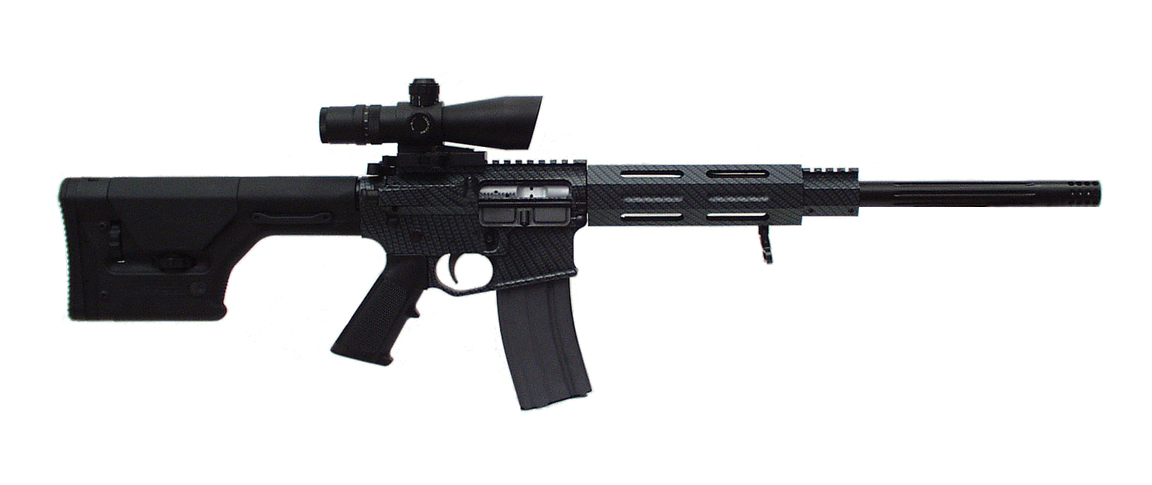

                    (Carbon Fiber)

Click on Thumbnail for a better view.

The reason behind this custom build was to make a CAR 16" Rifle with the look of a 20". Instead of having the long barrel ahead of the gas block, like on most 16" rifles, we wanted approximately 5" of barrel ahead of the gas block like the 20".  Our upper receiver is an octagon shape, so we built the gun on an 8 theme.  8 sided upper, 8 sided handguard, 8 flutes, 8 sided gas block. The handguard has 8 Slots & Flutes (4 Slots & 4 Flutes). The Muzzle Brake has 8 rows of holes (with 4 holes per row-1/2 of 8).  It looks cool and was fun to design and build.

Materials

Features

HGC AR15HD Billet Lower Receiver

Chamber .223 Match 1" Dia. 16" / Finished 17.75" w/Brake
HGC AR15HD Billet  Upper Receiver

Polish Chamber to Mirror Finish

Krieger .22 1x14 SS Match Barrel

Flute Barrel 8 Flutes (Under Handguard & In Front of Gas Block)

Fluted NM Chrome Bolt Carrier

11 Deg. Target Crown Muzzle Lap to 400 grit polish

NM Chrome Bolt Assy.

Thread Muzzle for Brake & Turn Brake to Barrel Dia.

SS Muzzle Brake

Turn & True Barrel Extension Locking Lugs

HGC Custom 8-1/2"  Billet Aluminum Octagon  Handguard

Turn & True Bolt Locking Lugs

Jewel AR Adjustable Two Stage Trigger

Turn & True Bolt Face

.940 Octagon Single Rail Gas Block

Hand Lap Locking Lugs to 600 grit polish

Tactical Latch

HGC Custom Gas Tube

MagPul PRS Buttstock

Cryo & Heat Treat Barrel

30rd. Magazine

Hand Fit Upper & Lower Receivers

Sling

Barrel Polished & Satin Matte Finish

Hard Carry Case

White or Black Cerakote Upper / Lower Receiver & Handguard

All other Misc. Mil-Spec. Parts

2 Coats Satin Clear Finish on White Parts







Black Cerakote Barrel, Gas Block, Trigger, Charging Handle,  Port Cover, Forward Assist, & Pins

Adj. Trigger Pull to 2.0 lbs.

Test Fire for Accuracy

Weight 8.5 lbs. w/o scope

We can build one like this or change it to meet your needs.

Pricing: Yin (Black) - $3950.00    Yang (White) - $4250.00    Carbon Fiber (Now with 8 Sources of Fiber!) - $4150.00

( Prices as of 12/2013 )
